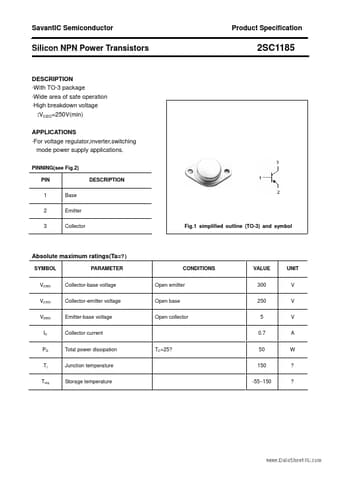

2SC1185 Datasheet, Transistor, SavantIC

PDF File Details

Part number:

2SC1185

Manufacturer:

SavantIC

File Size:

187.08kb

Download:

📄 Datasheet

Description:

Silicon power transistor.

With TO-3 package

Wide area of safe operation

High breakdown voltage :VCEO=250V(min) APPLICATIONS

2SC1185 Application

• Applications
• For voltage regulator,inverter,switching mode power supply applications. PINNING(see Fig.2) PIN 1 2 3 Base Emitter Collector F
