2SC2335

SILICON POWER TRANSISTOR

SavantIC

2SC2335 General Description

*With TO-220C package
*Collector-emitter sustaining voltage VCEO(sus)=400V(Min)
*Collector-emitter saturation voltage VCE(sat)=1.0V(Max.)@IC=3.0A,IB=0.6A
*Switching time-tf=1.0µs(Max.)@IC=3.0A APPLICATIONS
*Designed for use in high-voltage ,highspeed ,power switching in inductive.

2SC2335 Datasheet (177.18 KB)

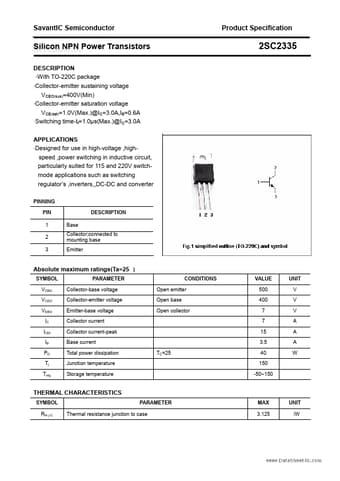

2SC2335 Datasheet Preview — Preview of 2SC2335 PDF

Datasheet Details

Part number:

2SC2335

Manufacturer:

SavantIC

File Size:

177.18 KB

Description:

Silicon power transistor.
