2SC2305 Datasheet - SavantIC

2SC2305 SILICON POWER TRANSISTOR

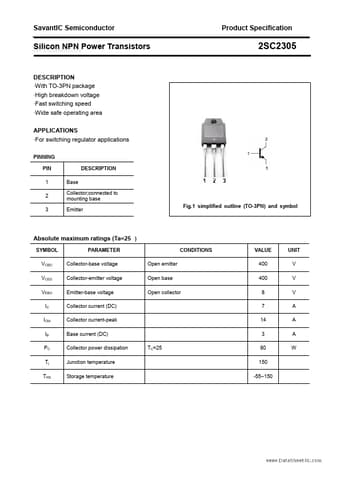

*With TO-3PN package *High breakdown voltage *Fast switching speed *Wide safe operating area APPLICATIONS *For switching regulator applications PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitter Fig.1 simplified outline (TO-3PN) and symbol DESCRIPTION Absolute m.

2SC2305_SavantIC.pdf

Preview of 2SC2305 PDF
2SC2305 Datasheet Preview Page 2 2SC2305 Datasheet Preview Page 3

Datasheet Details

Part number:

2SC2305

Manufacturer:

SavantIC

File Size:

168.64 KB

Description:

Silicon power transistor.
