2SC2331 Datasheet - SavantIC

2SC2331 SILICON POWER TRANSISTOR

*With TO-220 package *Complement to type 2SA1008 *Low collector saturation voltage *Fast switching speed APPLICATIONS *Switching regulators *DC-DC converters *High frequency power amplifiers PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitter Fig.1 simplif.

2SC2331_SavantIC.pdf

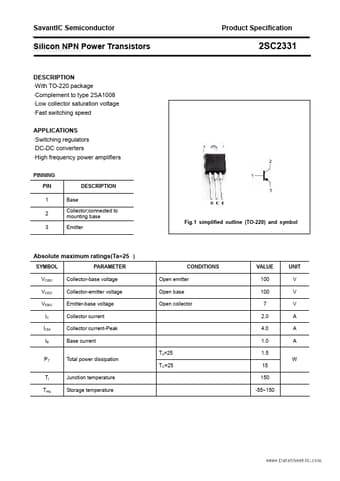

Preview of 2SC2331 PDF
2SC2331 Datasheet Preview Page 2 2SC2331 Datasheet Preview Page 3

Datasheet Details

Part number:

2SC2331

Manufacturer:

SavantIC

File Size:

130.33 KB

Description:

Silicon power transistor.
