2SC2334 Datasheet, Transistor, SavantIC

PDF File Details

Part number:

2SC2334

Manufacturer:

SavantIC

File Size:

167.32kb

Download:

📄 Datasheet

Description:

Silicon power transistor.

  • With TO-220 package
  • Complement to type 2SA1010
  • Low collector saturation voltage
  • Fast switching sp

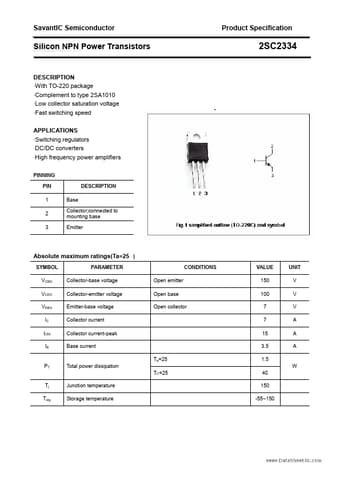

  • Datasheet Preview: 2SC2334 📥 Download PDF (167.32kb)
    Page 2 of 2SC2334 Page 3 of 2SC2334

    2SC2334 Application

    • Applications
    • Switching regulators
    • DC/DC converters
    • High frequency power amplifiers PINNING PIN 1 2 3 Base Collector;conne
