2SC3307 - SILICON POWER TRANSISTOR

Product Overview

📥 Download Datasheet

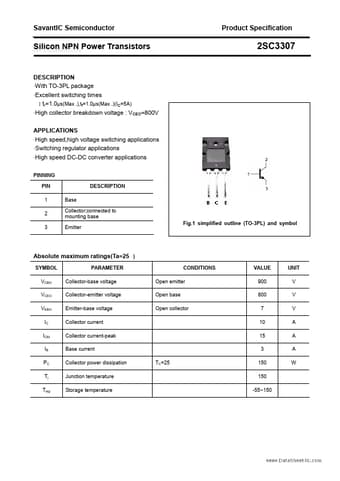

Datasheet preview – 2SC3307

Datasheet Details

Part number 2SC3307
Manufacturer SavantIC
File Size 266.35 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SC3307 Datasheet
Additional preview pages of the 2SC3307 datasheet.

Product details

Description

With TO-3PL package Excellent switching times : tr=1.0µs(Max .),tf=1.0µs(Max .)(IC=5A) High collector breakdown voltage : VCEO=800V APPLICATIONS High speed,high voltage switching applications Switching regulator applications High speed DC-DC converter applications PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitter Fig.1 simplified outline (TO-3PL) and symbol DESCRIPTION Absolute maximum ratings(Ta=25 ) SYMBOL VCBO VCEO VEBO IC ICM IB PC Tj Tstg PAR
