2SC3318 Datasheet - SavantIC

2SC3318 SILICON POWER TRANSISTOR

*With TO-3PN package *High voltage ,high speed switching *High reliability APPLICATIONS *Switching regulators *Ultrasonic generators *High frequency inverters *General purpose power amplifiers PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitter Fig.1 simpl.

2SC3318_SavantIC.pdf

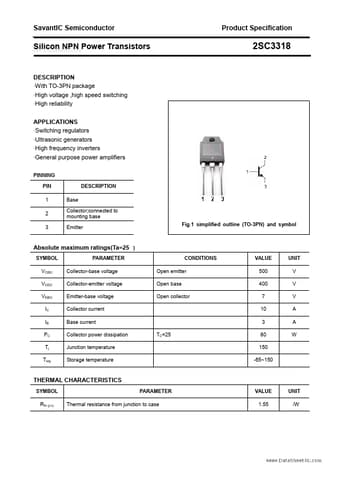

Preview of 2SC3318 PDF
2SC3318 Datasheet Preview Page 2 2SC3318 Datasheet Preview Page 3

Datasheet Details

Part number:

2SC3318

Manufacturer:

SavantIC

File Size:

226.54 KB

Description:

Silicon power transistor.
