Part number: 2SC3710
Manufacturer: SavantIC
File Size: 192.25KB
Download: 📄 Datasheet
Description: SILICON POWER TRANSISTOR
*High current switching applications

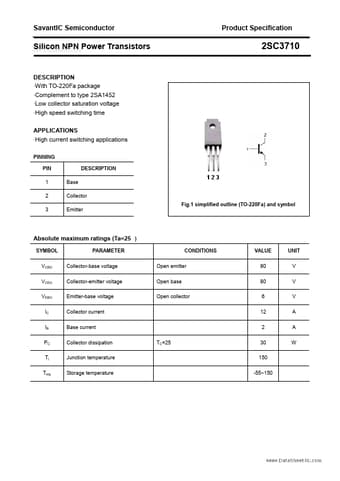

PINNING PIN 1 2 3 Base Collector Emitter Fig.1 simplified outline (TO-220Fa) an.
*With TO-220Fa package
*Complement to type 2SA1452
*Low collector saturation voltage
*High speed switching time APPLICATIONS
*High current switching applications
PINNING PIN 1 2 3 Base Collector Emitter Fig.1 simplified outline (T.
