2SC4153 Datasheet, Transistor, SavantIC

PDF File Details

Part number:

2SC4153

Manufacturer:

SavantIC

File Size:

277.64kb

Download:

📄 Datasheet

Description:

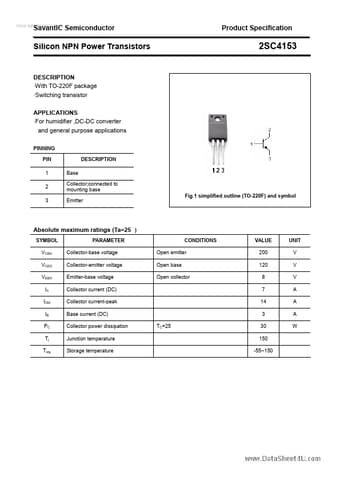

Silicon power transistor. With TO-220F package Switching transistor APPLICATIONS For humidifier ,DC-DC converter and general purpose

2SC4153 Application

• Applications
• For humidifier ,DC-DC converter and general purpose applications PINNING PIN 1 2 3 Base Collector;connected to mounting base E
