2SD1196 SILICON POWER TRANSISTOR

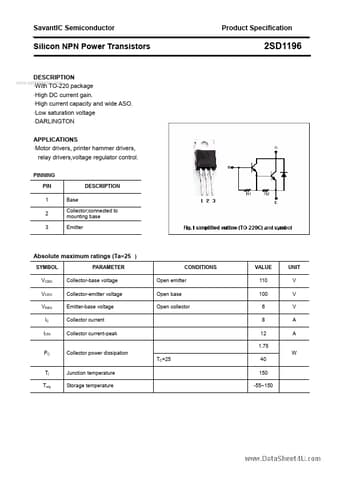

*With TO-220 package *High DC current gain. *High current capacity and wide ASO. *Low saturation voltage *DARLINGTON APPLICATIONS *Motor drivers, printer hammer drivers, relay drivers,voltage regulator control. PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitt.

2SD1196_SavantIC.pdf

Preview of 2SD1196 PDF
2SD1196 Datasheet Preview Page 2 2SD1196 Datasheet Preview Page 3

Datasheet Details

Part number:

2SD1196

Manufacturer:

SavantIC

File Size:

128.15 KB

Description:

Silicon power transistor.
