2SD1198 - Silicon NPN Transistor

2SD1198 Description

Transistor 2SD1198, 2SD1198A Silicon NPN epitaxial planer type darlington For low-frequency amplification Unit: mm 6.9±0.1 1.5 0.4 s .

2SD1198 Features

* q 2.5±0.1 1.0 1.0 2.4±0.2 2.0±0.2 3.5±0.1 q q 0.85 (Ta=25˚C) Ratings 30 60 25 50 5 1.5 1 1 150
* 55 ~ +150 Unit V 2.5 2.5 3 2 1 Parameter Collector to base voltage Collector to 2SD1198 2SD1198A 2SD1198 Symbol VCBO VCEO VEBO ICP IC PC
* Tj Tstg emitter voltage 2SD1198A Emitter to bas

📥 Download Datasheet

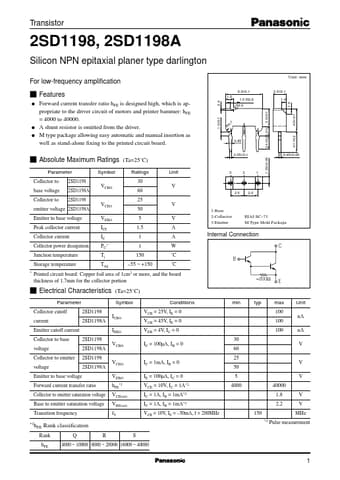

Preview of 2SD1198 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SD1198
Manufacturer
Panasonic Semiconductor
File Size
51.70 KB
Datasheet
2SD1198_PanasonicSemiconductor.pdf
Description
Silicon NPN Transistor
