| Part number | 2SD1263A, 2SD1263 |
|---|---|
| Manufacturer | SavantIC |
| File Size | 163.35 KB |
| Description | SILICON POWER TRANSISTOR |
| Datasheet |
 2SD1263_SavantIC.pdf
|
| Note |
This datasheet PDF includes multiple part numbers: 2SD1263A, 2SD1263. Please refer to the document for exact specifications by model. |

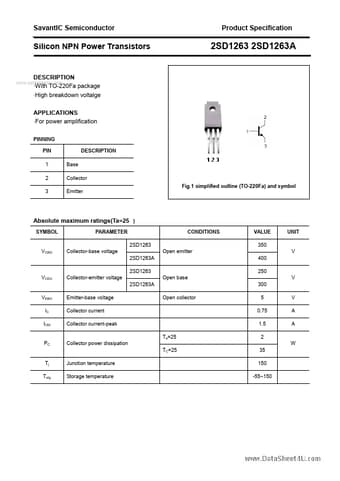

With TO-220Fa package High breakdown voltalge APPLICATIONS For power amplification PINNING PIN 1 2 3 Base Collector Emitter Fig.1 simplified outline (TO-220Fa) and symbol DESCRIPTION Absolute maximum ratings(Ta=25 ) SYMBOL PARAMETER 2SD1263 VCBO Collector-base voltage 2SD1263A 2SD1263 VCEO Collector-emitter voltage 2SD1263A VEBO IC ICM Emitter-base voltage Collector current Collector current-peak Ta=25 PC Collector power dissipation TC=25 Tj Tstg Junction temperature Storage temp
