BU326 Datasheet - SavantIC

BU326 SILICON POWER TRANSISTOR

*With TO-3 package *High voltage;high speed *Low collector saturation voltage. APPLICATIONS *Intended for operating in CTV receiver’s chopper supplies. PINNING(see fig.2) PIN 1 2 3 Base Emitter Collector Fig.1 simplified outline (TO-3) and symbol DESCRIPTION Absolute maximum ratings.

BU326_SavantIC.pdf

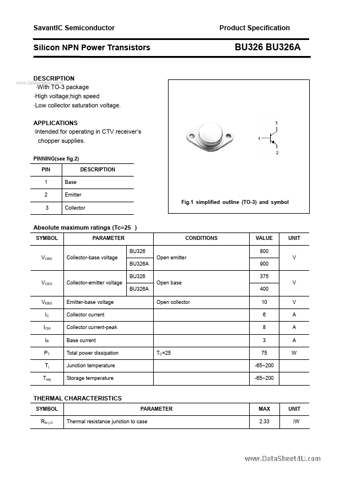

Preview of BU326 PDF
BU326 Datasheet Preview Page 2 BU326 Datasheet Preview Page 3

Datasheet Details

Part number:

BU326

Manufacturer:

SavantIC

File Size:

139.28 KB

Description:

Silicon power transistor.
