C1173 - Silicon NPN Transistor

The C1173 by SavantIC is a Silicon NPN Transistor. Below is the official datasheet preview.

📥 Download Datasheet

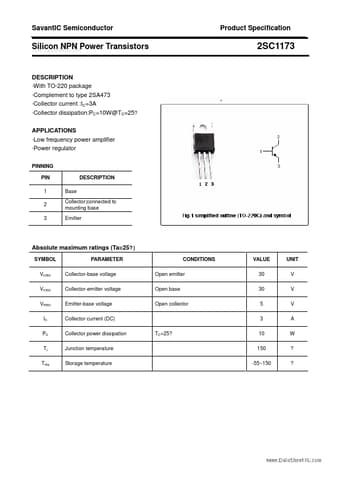

Official preview page of the C1173 Silicon NPN Transistor datasheet (SavantIC).

Datasheet Details

Part number C1173
Manufacturer SavantIC
File Size 86.87 KB
Description Silicon NPN Transistor
Datasheet download datasheet C1173-SavantIC.pdf
Additional preview pages of the C1173 datasheet.

C1173 Product details

Description

With TO-220 package Complement to type 2SA473 Collector current :IC=3A Collector dissipation:PC=10W@TC=25? Low frequency power amplifier Power regulator PINNING PIN 1 2 3 DESCRIPTION Base Collector;connected to mounting base Emitter Product Specification 2SC1173 Absolute maximum ratings (Ta=25? ) SYMBOL PARAMETER VCBO Collector-base voltage VCEO VEBO Collector-emitter voltage Emitter-base voltage IC Collector current (DC) PC Collector power
