MJE12007 - SILICON POWER TRANSISTOR

Datasheet Summary

Description

With TO-220 package www.datasheet4u.com High voltage Low saturation voltage APPLICATIONS Suited for line-operated switchmode applications such as: Fluorescent lamp ballasts Inverters Solenoid and relay drivers Motor controls Deflection circuits PINNING PIN 1 2

SavantIC

📥 Download Datasheet

Datasheet Details

Part number	MJE12007
Manufacturer	SavantIC
File Size	117.23 KB
Description	SILICON POWER TRANSISTOR
Datasheet	MJE12007 Datasheet
Additional preview pages of the MJE12007 datasheet.

📁 Similar Datasheet

MJE122 - Complementary Silicon Power Transistors (ON)
MJE127 - Complementary Silicon Power Transistors (ON)
MJE105 - 5 Ampere Power Transistor (Motorola)
MJE105 - 5 Ampere Power Transistor (ETC)
MJE105K - 5 Ampere Power Transistor (ETC)
MJE1100 - Transistor (Motorola Semiconductor)
MJE1100 - NPN Transistor (INCHANGE)
MJE1102 - (MJE110x) TRANSISTOR (Freescale Semiconductor)
MJE110x - (MJE110x) TRANSISTOR (Freescale Semiconductor)
MJE1123 - Bipolar Power PNP Transistor (Motorola)

Other Datasheets by SavantIC

MJE13002 - Silicon NPN Power Transistors
MJE13003 - Silicon NPN Power Transistors
MJE13004 - SILICON POWER TRANSISTOR
MJE1320 - SILICON POWER TRANSISTOR
MJE15028 - Silicon NPN Power Transistors
MJE15029 - Silicon PNP Power Transistors
MJE15030 - Silicon NPN Power Transistors
MJE15031 - Silicon PNP Power Transistors

Full PDF Text Transcription

Click to expand full text

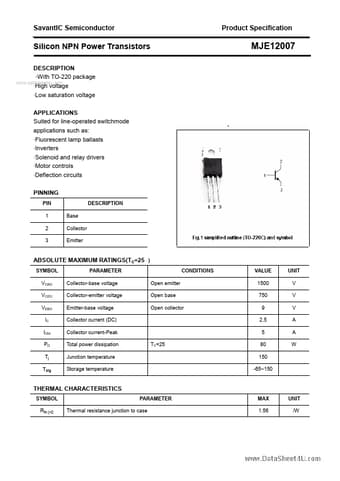

SavantIC Semiconductor Product Specification Silicon NPN Power Transistors DESCRIPTION ·With TO-220 package www.datasheet4u.com ·High voltage ·Low saturation voltage APPLICATIONS Suited for line-operated switchmode applications such as: ·Fluorescent lamp ballasts ·Inverters ·Solenoid and relay drivers ·Motor controls ·Deflection circuits PINNING PIN 1 2 3 Base Collector Emitter DESCRIPTION MJE12007 ABSOLUTE MAXIMUM RATINGS(TC=25 ) SYMBOL VCBO VCEO VEBO IC ICM PD Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current (DC) Collector current-Peak Total power dissipation Junction temperature Storage temperature TC=25 Open emitter Open base Open collector CONDITIONS VALUE 1500 750 9 2.
