2SC5149 - Silicon NPN Power Transistors

2SC5149 Description

SavantIC Semiconductor www.DataSheet4U.com Product Specification Silicon NPN Power Transistors .
With TO-3P(H)IS package. High speed. High voltage. Low saturation voltage. Bult-in damper diode APPLICATIONS. Horizontal defl.

2SC5149 Applications

* Horizontal deflection output for high resolution display,colorTV

📥 Download Datasheet

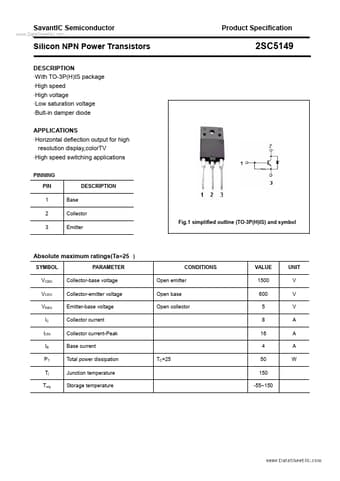

Preview of 2SC5149 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SC5149
Manufacturer
Savantic
File Size
313.47 KB
Datasheet
2SC5149_Savantic.pdf
Description
Silicon NPN Power Transistors
