DKFS-B22B-1N3L

Magnetically Compensated SMD Choke

DKFS-B22B-1N3L General Description

- Current compensated choke - SMD-terminals - Vertical and horizontal version Applications Standards - EN 60938 - UL 1283 - CSA 22.2 no 8 - Attenuation of common mode interferences - Designed for 230/400 VAC applications - Chopper amplifiers - DC drives and stepper motor controls - Switching po.

DKFS-B22B-1N3L Datasheet (542.96 KB)

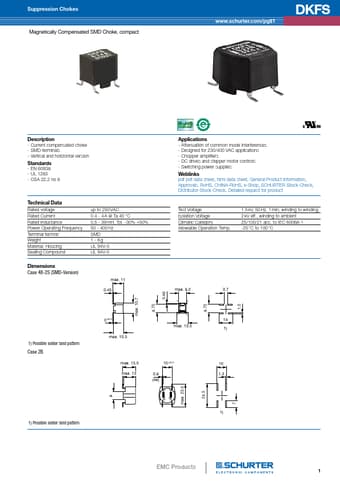

Preview of DKFS-B22B-1N3L PDF

Datasheet Details

Part number:

DKFS-B22B-1N3L

Manufacturer:

Schurter

File Size:

542.96 KB

Description:

Magnetically compensated smd choke.
