2SC1959 NPN Plastic Encapsulated Transistor

2SC1959 Description

Elektronische Bauelemente 2SC1959 0.5A, 35V NPN Plastic Encapsulated Transistor RoHS Compliant Product A suffix of “-C” specifies halogen & lead-fre.

2SC1959 Features

* Excellent hFE Linearity
* High Transition Frequency CLASSIFICATION OF hFE Product-Rank 2SC1959-O hFE(1) Range hFE(2) 70~140 25 (Min) 2SC1959-Y 120~240 40 (Min) 2SC1959-GR 200~400 - MARKING C1959 031 Collector 
* Base  Emitter ABSOLUTE MAXIMUM RATINGS (TA=25°C unless otherwi

📥 Download Datasheet

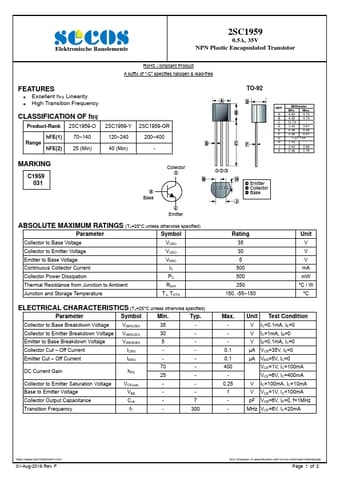

Preview of 2SC1959 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SC1959
Manufacturer
SeCoS
File Size
624.75 KB
Datasheet
2SC1959-SeCoS.pdf
Description
NPN Plastic Encapsulated Transistor
