2SD1760 - NPN Epitaxial Planar Silicon Transistor

2SD1760 Description

Elektronische Bauelemente 2SD1760 3A , 60V NPN Epitaxial Planar Silicon Transistor RoHS Compliant Product A suffix of “-C” specifies halogen & lead-.

2SD1760 Features

* Low VCE(sat). VCE(sat) = 0.5V(Typ. ) (IC/IB = 2A / 0.2A)
* Complements the 2SB1184 D-Pack (TO-252) CLASSIFICATION OF hFE Product-Rank 2SD1760-P 2SD1760-Q Range 82~180 120~270 2SD1760-R 180~390 PACKAGE INFORMATION Package MPQ TO-252 2.5K Leader Size 13’ inch Collector   Ba

📥 Download Datasheet

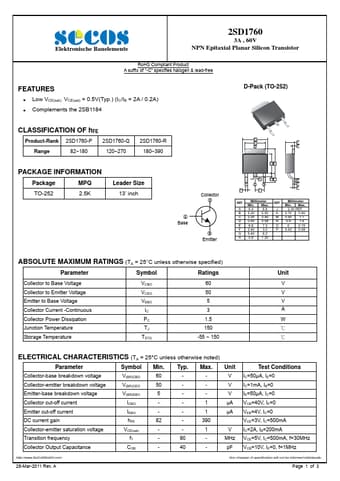

Preview of 2SD1760 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SD1760
Manufacturer
SeCoS
File Size
161.04 KB
Datasheet
2SD1760-SeCoS.pdf
Description
NPN Epitaxial Planar Silicon Transistor
