BAR64-02V

Small Signal General Purpose PiN Diode

BAR64-02V Features

* Low Diode Capacitance Low Diode Forward Resistance MARKING O PACKAGE INFORMATION Package MPQ SOD-523 8K Leader Size 7 inch SOD-523 A B D CF E REF. A B C Millimeter Min. Max. 1.50 1.70 0.70 0.90 0.50 0.77 REF. D E F Millimeter Min. Max. 1.10 1.30 0.25 0.35 0.07 0.20 1 Cathode 2 Anode

BAR64-02V Datasheet (177.41 KB)

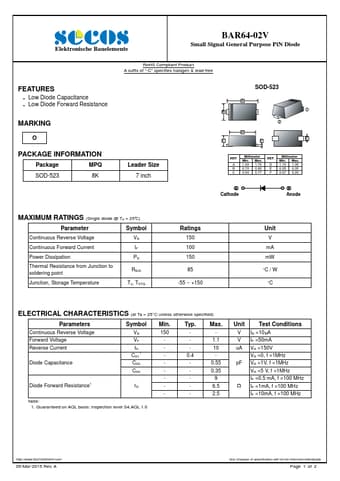

Preview of BAR64-02V PDF

Datasheet Details

Part number:

BAR64-02V

Manufacturer:

SeCoS

File Size:

177.41 KB

Description:

Small signal general purpose pin diode.
Elektronische Bauelemente BAR64-02V Small Signal General Purpose PiN Diode RoHS Compliant Product A suffix of ā€œ-Cā€ specifies halogen & lead-free FE.
