BAR64-03W Silicon PIN Diode

BAR 64-03W Silicon PIN Diode l High voltage current controlled RF resistor for RF attenuator and swirches l Freqency range above 1 MHz l Low resistance and short carrier lifetime l For frequencies up to 3 GHz Type BAR 64-03W Marking 2 Ordering Code (tape and reel) Q62702-A1045 Pin Configuration Package 1 2 C A SOD-323 1) Maximum Ratings per Diode Parameter Reverse voltage Forward current Total Power dissipation TS ≤ 25°C Junction temperature Operating temperature range Storage temperature ran.

BAR64-03W_SiemensSemiconductorGroup.pdf

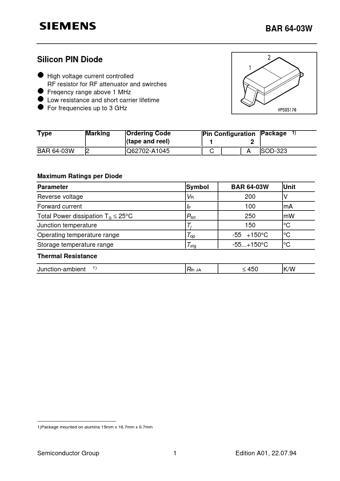

BAR64-03W Datasheet Preview — Preview of BAR64-03W PDF

Datasheet Details

Part number:

BAR64-03W

Manufacturer:

Siemens Semiconductor Group

File Size:

41.54 KB

Description:

Silicon pin diode.
