DTA144ESA, DTA144EE - PNP Digital Transistors

SeCoS

📥 Download Datasheet

DTA144ESA Datasheet Preview — This datasheet PDF includes multiple part numbers: DTA144ESA, DTA144EE. Please refer to the document for exact specifications by model.

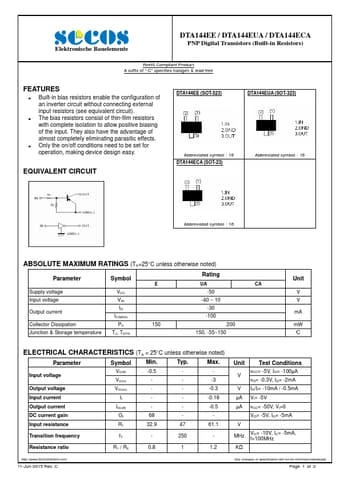

datasheet Preview Page 2

Datasheet Details

Part number: DTA144ESA, DTA144EE
Manufacturer: SeCoS
File Size: 355.96 KB
Datasheet: DTA144EE-SeCoS.pdf
Description: PNP Digital Transistors
Note: This datasheet PDF includes multiple part numbers: DTA144ESA, DTA144EE.
Please refer to the document for exact specifications by model.

DTA144ESA Product details

Features

Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit).
The bias resistors consist of thin-film resistors with complete isolation to allow positive biasing of the input. They also have the advantage of almost completely eliminating parasitic effects.
Only the on/off conditions need to be set for operation, making device design easy.
