KTD1304 NPN Plastic Encapsulated Transistor

KTD1304 Description

Elektronische Bauelemente KTD1304 0.3 A, 25 V NPN Plastic Encapsulated Transistor RoHS Compliant Product A suffix of “-C” specifies halogen and lead.

KTD1304 Features

* z High emitter-base voltage: VEBO=12V(Min) z low on resistance: Ron=0.6Ω(max)(IB=1mA) PACKAGE DIMENSIONS 1 Base 3 Collector 2 Emitter A L 3 Top View 12 VG BS D K J C H SOT-23 Dim Min Max A 2.800 3.040 B 1.200 1.400 C 0.890 1.110 D 0.370 0.500 G 1.780 2.040 H 0.013 0.100 J 0.085 0.177 K 0.450

📥 Download Datasheet

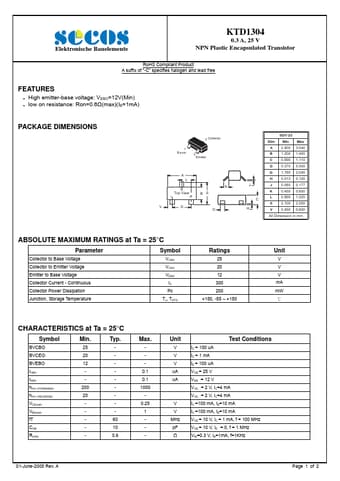

Preview of KTD1304 PDF
datasheet Preview Page 2

Datasheet Details

Part number
KTD1304
Manufacturer
SeCoS
File Size
240.62 KB
Datasheet
KTD1304-SeCoS.pdf
Description
NPN Plastic Encapsulated Transistor
