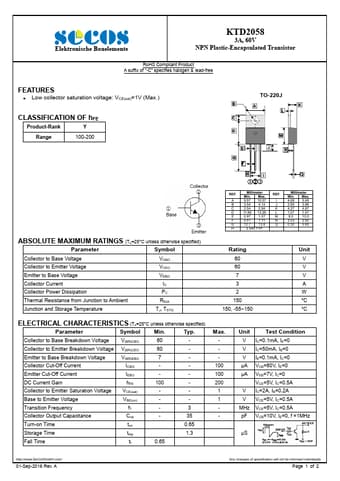

* Low collector saturation voltage: VCE(sat)=1V (Max.) TO-220J CLASSIFICATION OF hFE Product-Rank Y Range 100-200 REF. A B C D E F G H Millimeter Min. Max. 9.57 10.57 3.54 4.14 2.54 2.94 11.86 13.26 0.97 1.57 0.51 1.11 12.7 13.8 2.540 TYP. REF. I J K L M N Q Millimeter Min. Max. 4.68 5.48 2.
KTD2058
SeCoS
241.33 KB
Npn transistor.
Elektronische Bauelemente
KTD2058
3A, 60V P Plastic-Encapsulated Transistor
RoHS Compliant Product A suffix of “-C” specifies halogen & lead-free
F.
📁 Related Datasheet
KTD2058 - Silicon NPN Power Transistors
(Inchange Semiconductor)
isc Silicon NPN Power Transistor
DESCRIPTION ·Collector-Emitter Breakdown Voltage-
: V(BR)CEO= 60V(Min.) ·Collector Power Dissipation
: PC= 25 W@ TC=.
KTD2058 - TRIPLE DIFFUSED NPN TRANSISTOR
(KEC)
SEMICONDUCTOR
TECHNICAL DATA
KTD2058
TRIPLE DIFFUSED NPN TRANSISTOR
GENERAL PURPOSE APPLICATION.
FEATURES Low Saturation Voltage : VCE(sat)=1.0V(Max.
