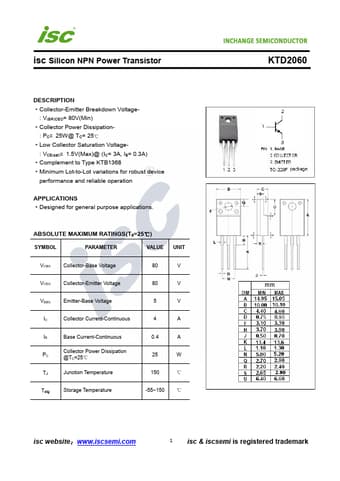

KTD2060 Datasheet, Transistors, Inchange Semiconductor

PDF File Details

Part number:

KTD2060

Manufacturer:

Inchange Semiconductor

File Size:

214.46kb

Download:

📄 Datasheet

Description:

Silicon npn power transistors.

Collector-Emitter Breakdown Voltage- : V(BR)CEO= 80V(Min)

Collector Power Dissipation- : PC= 25W@ TC= 25℃

KTD2060 Application

• Applications
• Designed for general purpose applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-
