KTD2058 Datasheet, Transistors, Inchange Semiconductor

PDF File Details

Part number:

KTD2058

Manufacturer:

Inchange Semiconductor

File Size:

215.78kb

Download:

📄 Datasheet

Description:

Silicon npn power transistors.

  • Collector-Emitter Breakdown Voltage- : V(BR)CEO= 60V(Min.)
  • Collector Power Dissipation : PC= 25 W@ TC= 25℃

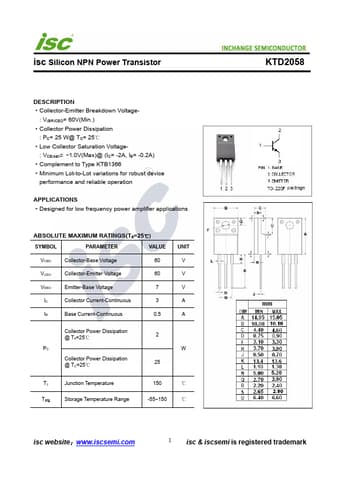

  • Datasheet Preview: KTD2058 📥 Download PDF (215.78kb)
    Page 2 of KTD2058

    KTD2058 Application

    • Applications
    • Designed for low frequency power amplifier applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VCBO Col
