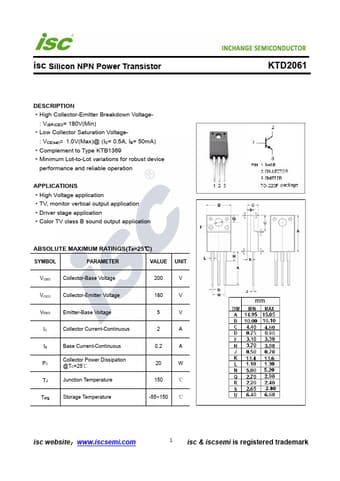

KTD2061 Datasheet, Transistors, Inchange Semiconductor

PDF File Details

Part number:

KTD2061

Manufacturer:

Inchange Semiconductor

File Size:

217.52kb

Download:

📄 Datasheet

Description:

Silicon npn power transistors.

High Collector-Emitter Breakdown Voltage- : V(BR)CEO= 180V(Min)

Low Collector Saturation Voltage- : VCE(sat)= 1.0V(

KTD2061 Application

• Applications
• High Voltage application
• TV, monitor vertical output application
• Driver stage application
• Color TV
