SCS4448WS Switching Diode

SCS4448WS Description

SCS4448WS Elektronische Bauelemente Surface Mount Fast Switching Diode RoHS Compliant Product A suffix of "-C" specifies halogen & lead-free SOD-323 .

SCS4448WS Features

* CATHODE MARK 2.5±0.2 1.7±0.1 0.2A0.1 0.3±0.05 1.25±0.1 0.95 + 0.2 - 0.15 . Case: SOD-323, Plastic . Epoxy: UL 94V-0 rate flame retardant . Metallurgically bonded construction . Polarity: Color band denotes cathode end . Mounting position: Any . Weight: 0.004 grams MECHANICAL DATA Marking:

📥 Download Datasheet

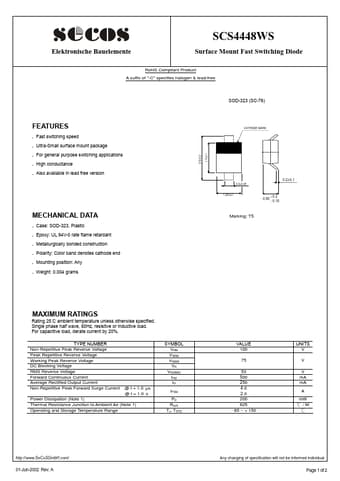

Preview of SCS4448WS PDF
datasheet Preview Page 2

Datasheet Details

Part number
SCS4448WS
Manufacturer
SeCoS
File Size
308.73 KB
Datasheet
SCS4448WS_SeCoS.pdf
Description
Switching Diode
