SD103B, SD103A - 0.35AMP Schottky Barrier Rectifier

SeCoS

📥 Download Datasheet

SD103B Datasheet Preview — This datasheet PDF includes multiple part numbers: SD103B, SD103A. Please refer to the document for exact specifications by model.

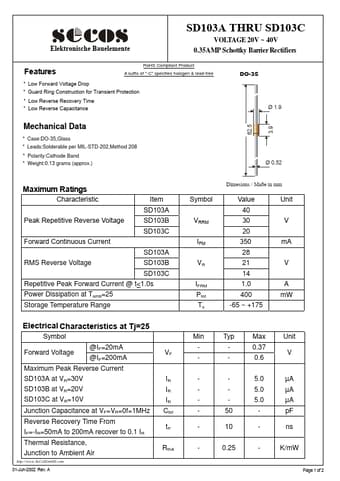

datasheet Preview Page 2

Datasheet Details

Part number	SD103B, SD103A
Manufacturer	SeCoS
File Size	356.24 KB
Description	0.35AMP Schottky Barrier Rectifier
Datasheet	SD103A-SeCoS.pdf
Note	This datasheet PDF includes multiple part numbers: SD103B, SD103A. Please refer to the document for exact specifications by model.

SD103B Product details

Features

RoHS Compliant Product A suffix of "-C" specifies halogen & lead-free.
Low Forward Voltage Drop.
Guard Ring Construction for Transient Protection.
Low Reverse Recovery Time.
Low Reverse Capacitance DO-35 Ø 1.9 Mechanical Data.
Case:DO-35,Glass.
Leads:Solderable per MIL-STD-202,Method 208.
Polarity:Cathode Band.
Weight:0.13 grams (approx. ) 62.5 3.9 Ø 0.52 Maximum Ratings Characteristic Item SD103A Peak Repetitive Reverse Voltage SD103B SD103C.
