SD103BWS-G, SD103AWS-G, Small Signal Schottky Diodes

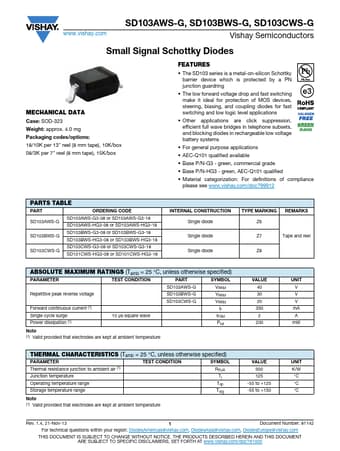

www.vishay.com SD103AWS-G, SD103BWS-G, SD103CWS-G Vishay Semiconductors Small Signal Schottky Diodes MECHANICAL DATA Case: SOD-323 Weight: approx..

SD103AWS-G-Vishay.pdf

SD103BWS-G Datasheet Preview — This datasheet PDF includes multiple part numbers: SD103BWS-G, SD103AWS-G. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SD103BWS-G, SD103AWS-G

Manufacturer:

Vishay ↗

File Size:

73.78 KB

Description:

Small Signal Schottky Diodes

Note:

This datasheet PDF includes multiple part numbers: SD103BWS-G, SD103AWS-G.
Please refer to the document for exact specifications by model.

Features

* The SD103 series is a metal-on-silicon Schottky barrier device which is protected by a PN junction guardring
* The low forward voltage drop and fast switching make it ideal for protection of MOS devices, steering, biasing, and coupling diodes for fast switching and low logic level

Applications

* Other applications are click suppression, efficient full wave bridges in telephone subsets, and blocking diodes in rechargeable low voltage battery systems
* For general purpose applications
* AEC-Q101 qualified available
* Base P/N-G3 - green, commercial grade
