SD1030CS, SD1020CS Datasheet - Pan Jit International

SD1030CS, SD1020CS, DPAK SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

SD1020CS Thru SD10100CS DPAK SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER VOLTAGE - 20 to 100 Volts CURRENT - 10.0 Amperes .

SD1020CS_PanJitInternational.pdf

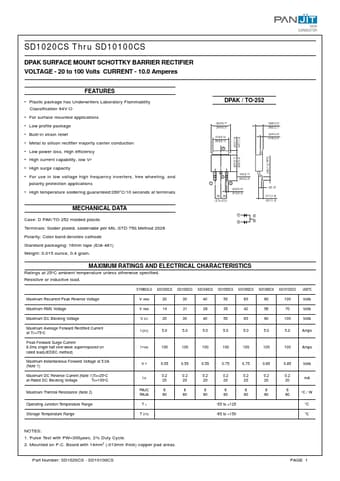

SD1030CS Datasheet Preview — This datasheet PDF includes multiple part numbers: SD1030CS, SD1020CS. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SD1030CS, SD1020CS

Manufacturer:

Pan Jit International

File Size:

34.94 KB

Description:

DPAK SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

Note:

This datasheet PDF includes multiple part numbers: SD1030CS, SD1020CS.
Please refer to the document for exact specifications by model.

Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-O

Applications

* Low profile package
* Built-in strain relief
* Metal to silicon rectifier majority carrier conduction
* Low power loss, High efficiency
* High current capability, low VF
* High surge capacity
* For use in low voltage high frequency inverters,
