SD1030CT, SD1020CT (SD1020CT - SD10100CT) SCHOTTKY BARRIER RECTIFIER

Pan Jit International

Description

SD1020CT Thru SD10100CT SCHOTTKY BARRIER RECTIFIER VOLTAGE - 20 to 100 Volts CURRENT - 10.0 Amperes .

📥 Download Datasheet

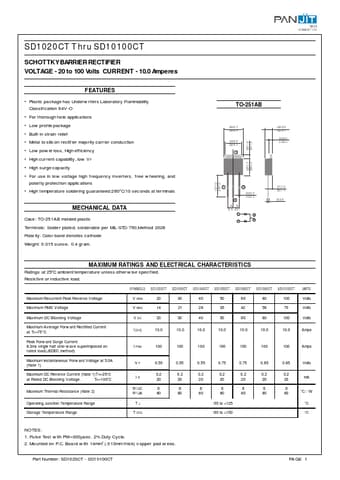

SD1030CT Datasheet Preview — This datasheet PDF includes multiple part numbers: SD1030CT, SD1020CT. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: SD1030CT, SD1020CT
Manufacturer: Pan Jit International
File Size: 331.93 KB
Datasheet: SD1020CT_PanJitInternational.pdf
Description: (SD1020CT - SD10100CT) SCHOTTKY BARRIER RECTIFIER
Note: This datasheet PDF includes multiple part numbers: SD1030CT, SD1020CT.
Please refer to the document for exact specifications by model.

Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-O

Applications

* Low profile package
* Built-in strain relief
* Metal to silicon rectifier majority carrier conduction
* Low power loss, High efficiency
* High current capability, low VF
* High surge capacity .307(7.8) .283(7.2) TO-251AB .264(6.7) .248(6.3) .216(5.
