SD103BWS, SD103AWS Datasheet - Pan Jit International

SD103BWS - (SD103AWS - SD103CWS) SURFACE MOUNT SCHOTTKY BARRIER

SD103BWS Features

* Low turn-on voltage

* Fast switching

* PN Junction Guard Ring for Transient and ESD Protection. CURRENT 0.35 Ampers PACKAGE SOD-323 MECHANICAL DATA Case: SOD-323, Plastic Terminals: Solderable per MIL-STD-202, Method 208 Approx. Weight: 0.008 gram Marking: S6, S7, S8

SD103AWS_PanJitInternational.pdf

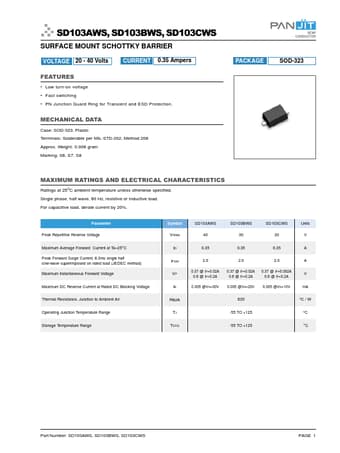

SD103BWS Datasheet Preview — This datasheet PDF includes multiple part numbers: SD103BWS, SD103AWS. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SD103BWS, SD103AWS

Manufacturer:

Pan Jit International

File Size:

56.64 KB

Description:

(sd103aws - sd103cws) surface mount schottky barrier.

Note:

This datasheet PDF includes multiple part numbers: SD103BWS, SD103AWS.
Please refer to the document for exact specifications by model.
