SD103BW

(SD103AW - SD103CW) SURFACE MOUNT SCHOTTKY BARRIER DIODES

SD103BW Features

* Low turn-on voltage

* Fast switching

* PN Junction Guard Ring for Transient and ESD Protection. MECHANICAL DATA

* Case: SOD-123, Molded Plastic

* Terminals: Solderable per MIL-STD-202, Method 208

* Polarity: See Diagram Below

* Approx. Weigh

SD103BW Datasheet (62.69 KB)

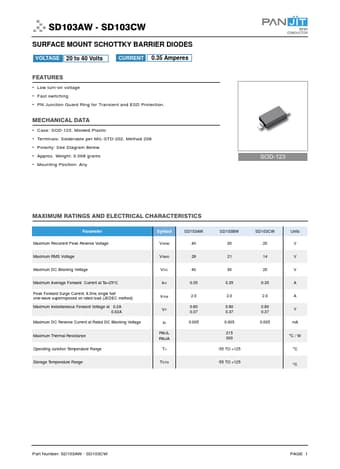

Preview of SD103BW PDF

Datasheet Details

Part number:

SD103BW

Manufacturer:

Pan Jit International

File Size:

62.69 KB

Description:

(sd103aw - sd103cw) surface mount schottky barrier diodes.
