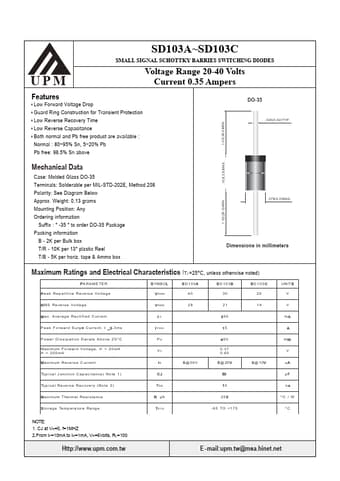

SD103B Features
* Low Forward Voltage Drop
* Guard Ring Construction for Transient Protection
* Low Reverse Recovery Time
* Low Reverse Capacitance
* Both normal and Pb free product are available : Normal : 80~95% Sn, 5~20% Pb Pb free: 98.5% Sn above 1.02(26.0)MIN. DO-41 DO-35 .020(0.52)TYP.
Datasheet Details
SD103B, SD103A
UPM
389.67 KB
Small signal schottky barries switching diodes.
This datasheet PDF includes multiple part numbers: SD103B, SD103A.
Please refer to the document for exact specifications by model.
