SM4002FL - 1.0 Amp Surface Mount Silicon Rectifiers

This page provides the datasheet information for the SM4002FL, a member of the SM4001FL 1.0 Amp Surface Mount Silicon Rectifiers family.

Datasheet Summary

Features

  • Low forward surge current.
  • Ideal for surface mounted.

📥 Download Datasheet

Datasheet preview – SM4002FL

Datasheet Details

Part number SM4002FL
Manufacturer SeCoS
File Size 249.27 KB
Description 1.0 Amp Surface Mount Silicon Rectifiers
Datasheet download datasheet SM4002FL Datasheet
Additional preview pages of the SM4002FL datasheet.

📁 Similar Datasheet

  • SM4002FL - SURFACE MOUNT RECTIFIER DIODES (Sunmate)
  • SM4002 - RECTIFIER DIODES (AiT Components)
  • SM4002 - 1.0AMP. Surface Mount Glass Passivated Silicon Rectifiers (Kingtronics)
  • SM4002 - 1.0 A Surface Mount Silicon Rectifier (SEP ELECTRONIC)
  • SM4002 - GENERAL PURPOSE SILICON RECTIFIER (Dc Components)
  • SM4002 - Surface Mount Rectifiers (HY)
  • SM4002 - Standard Recovery SMD Rectifier Diodes (Diotec)
  • SM4002 - Surface Mount Standard Recovery Glass Passivated Rectifiers (Weitron Technology)
  • SM4002 - Standard silicon rectifier diodes (Semikron International)
  • SM4002 - Surface Mount Rectifiers (LGE)
Other Datasheets by SeCoS
  • SM4002FLCR-C - 1.0 Amp Surface Mount Silicon Rectifiers
  • SM4002B - Surface Mount Silicon Rectifiers
  • SM4002JD - Surface Mount Silicon Rectifier
  • SM4002JD-C - 1.0 Amp Surface Mount Silicon Rectifiers
  • SM4002M - Surface Mount General Purpose Rectifiers
  • SM4002MH - Surface Mount General Purpose Rectifiers
  • SM4002WT-C - Surface Mount Silicon Rectifiers
  • SM4002WTCR-C - 1.0 Amp Surface Mount Silicon Rectifiers

Full PDF Text Transcription

Click to expand full text

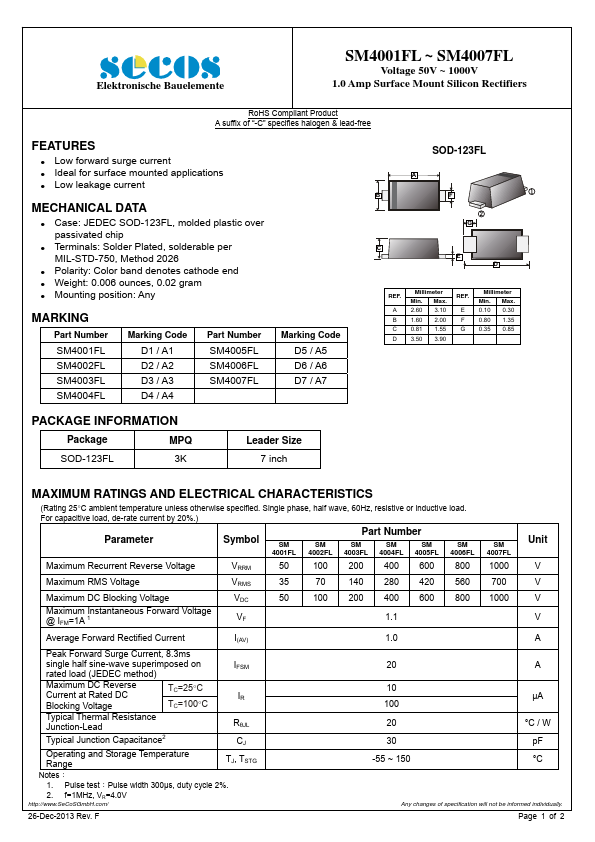

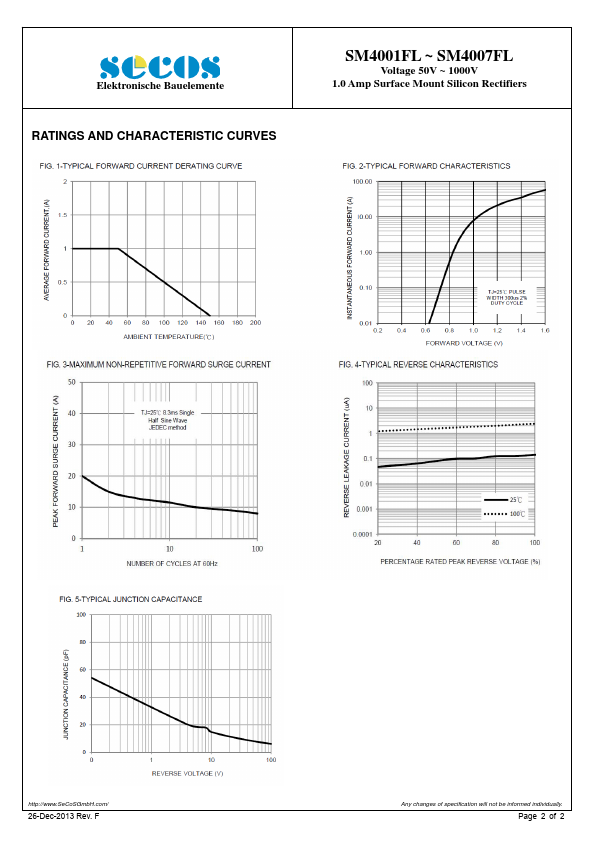

Elektronische Bauelemente SM4001FL ~ SM4007FL Voltage 50V ~ 1000V 1.0 Amp Surface Mount Silicon Rectifiers RoHS Compliant Product A suffix of “-C” specifies halogen & lead-free FEATURES  Low forward surge current  Ideal for surface mounted applications  Low leakage current MECHANICAL DATA  Case: JEDEC SOD-123FL, molded plastic over passivated chip  Terminals: Solder Plated, solderable per MIL-STD-750, Method 2026  Polarity: Color band denotes cathode end  Weight: 0.006 ounces, 0.02 gram  Mounting position: Any MARKING Part Number SM4001FL SM4002FL SM4003FL SM4004FL Marking Code D1 / A1 D2 / A2 D3 / A3 D4 / A4 Part Number SM4005FL SM4006FL SM4007FL Marking Code D5 / A5 D6 / A6 D7 / A7 SOD-123FL A B F G C E D REF. A B C D Millimeter Min. Max. 2.60 3.10 1.60 2.00 0.
