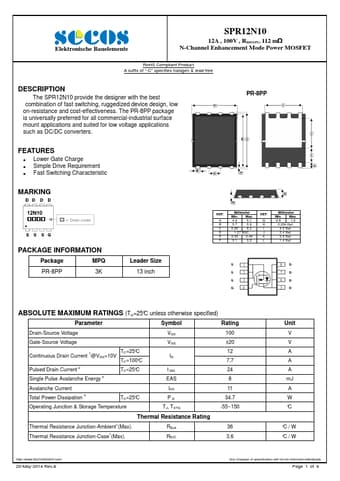

SPR12N10 N-Channel Enhancement Mode Power MOSFET

The SPR12N10 provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The PR-8PP package is universally preferred for all commercial-industrial surface mount applications and suited for low voltage applications such as DC/D.

SPR12N10 Features

* Lower Gate Charge Simple Drive Requirement Fast Switching Characteristic MARKING 12N10 = Date code PACKAGE INFORMATION Package MPQ PR-8PP 3K Leader Size 13 inch REF. A B C D E F Millimeter Min. Max. 4.9 5.1 5.7 5.9 5.95 6.2 1.27 BSC. 0.35 0.49 0.1 0.2 REF. G H I J K L Millimeter Min. Ma
