STESD05C Plastic Encapsulate ESD Protection Diodes

📥 Download Datasheet Datasheet Preview Page 1

Description

Elektronische Bauelemente STESD05C Plastic Encapsulate ESD Protection Diodes RoHS Compliant Product A suffix of “-C” specifies halogen & lead-free .
The STESD05C is designed to protect voltage sensitive components from ESD.

📥 Download Datasheet

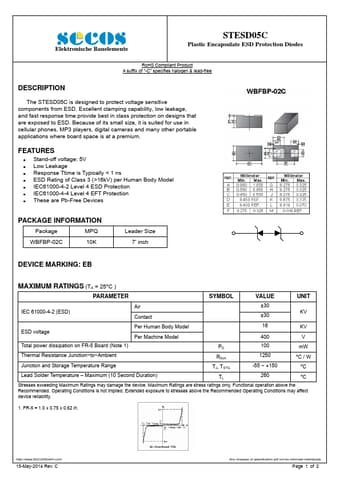

Preview of STESD05C PDF
datasheet Preview Page 2

Datasheet Specifications

Part number
STESD05C
Manufacturer
SeCoS
File Size
113.42 KB
Datasheet
STESD05C-SeCoS.pdf
Description
Plastic Encapsulate ESD Protection Diodes

Features

* Stand-off voltage: 5V
* Low Leakage
* Response Ttime is Typically < 1 ns
* ESD Rating of Class 3 (>16kV) per Human Body Model
* IEC61000-4-2 Level 4 ESD Protection
* IEC61000-4-4 Level 4 EFT Protection
* These are Pb-Free Devices PACKAGE INFORMATION Package MPQ WBFB

STESD05C Distributors
