STMGS5470 Synchronous DC/DC Buck Converter

SeCoS

STMGS5470 Description

Elektronische Bauelemente STMGS5470 2Amp 18V 500kHz Synchronous DC/DC Buck Converter RoHS Compliant Product A suffix of “-C” specifies halogen and l.
The STMGS5470 is a high-frequency, Synchronous, Rectified, Step down, Switch-mode converter With internal power MOSFETs.

STMGS5470 Features

* include over-current protection and thermal shutdown. The STMGS5470 requires a minimal number of readily available, standard external components and is available in space-saving SOT-26 package. FEATURES Wide 4.7V-to-18V Operating Input Ran 160mΩ/85mΩ Low-RDS(ON) Internal Power MOSFETs Power-Save Mod

STMGS5470 Applications

* ELECTRICAL CHARACTERISTICS (Typical values VIN = 12V, TA=25 °C, unless otherwise specified) Characteristics Symbol Test Conditions Min Typ Input Voltage Range Quiescent Current Shutdown Current Feedback Voltage Feedback Over-voltage Threshold Output Voltage Range High Side Switch On Resistance

📥 Download Datasheet

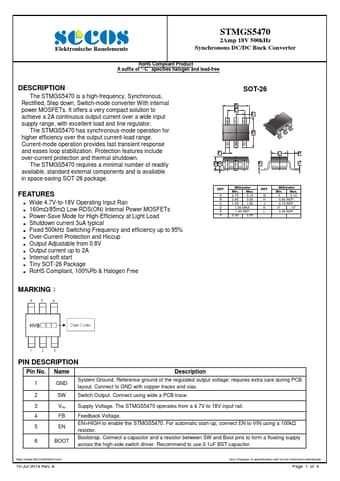

STMGS5470 Datasheet Preview — Preview of STMGS5470 PDF

Datasheet Details

Part number: STMGS5470
Manufacturer: SeCoS
File Size: 332.45 KB
Datasheet: STMGS5470-SeCoS.pdf
Description: Synchronous DC/DC Buck Converter
