SU75L33

CMOS Voltage Regulator

SU75L33 Features

* Internal Short-Circuit Current Limiting Internal Thermal Overload Protection No External Components Required PACKAGE INFORMATION Package MPQ SOT-23 3K Leader Size 7 inch SOT-23 A L 3 Top View C B 12 KE 1 D F GH 3 2 1. OUT 2. GND 3. IN J REF. A B C D E F Millimeter Min. Max. 2.70 3.10

SU75L33 General Description

The SU75LXX series are a group of positive voltage regulators manufactured by CMOS technologies with low power consumption and low dropout voltage, which provide large output currents even when the difference of the input-output voltage is small. The SU75LXX series can deliver 250mA output current a.

SU75L33 Datasheet (425.70 KB)

Rating: 1 ★ (4 votes)

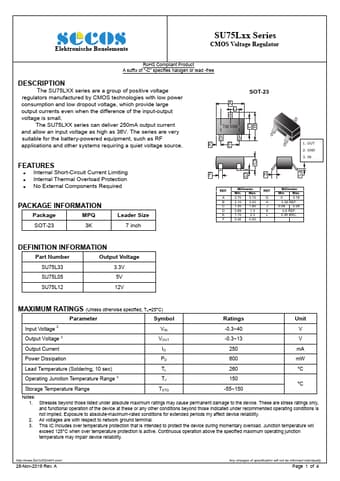

Preview of SU75L33 PDF

Datasheet Details

Part number:

SU75L33

Manufacturer:

SeCoS

File Size:

425.70 KB

Description:

Cmos voltage regulator.
