SU7809-B, SU7805-B Positive Voltage Regulator

SU7809-B Description

Elektronische Bauelemente SU78xx-B Series 2-Terminal Positive Voltage Regulator RoHS Compliant Product A suffix of “-C” specifies halogen and lead-f.
The SU78XX-B series of fixed-voltage monolithic integrated-circuit voltage regulators designed for a wide range of applications.

SU7809-B Features

* of the regulators make them essentially immune to overload. TO-263-2L FEATURES
* 5V,6V,8V,9V,10V,12V Output Voltage Available
* Output Transistor Safe-Area Compensation
* No External Components
* Internal Thermal Overload Protection
* Internal Short-Circuit Current Limiting

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SU7809-B, SU7805-B. Please refer to the document for exact specifications by model.

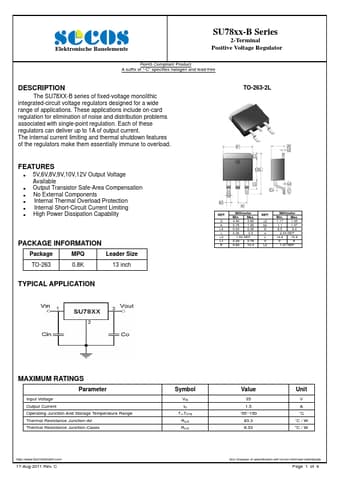

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SU7809-B, SU7805-B
Manufacturer
SeCoS
File Size
529.36 KB
Datasheet
SU7805-B-SeCoS.pdf
Description
Positive Voltage Regulator
Note
This datasheet PDF includes multiple part numbers: SU7809-B, SU7805-B.
Please refer to the document for exact specifications by model.
