SU7805-B Datasheet - SeCoS

Positive Voltage Regulator

SU7805-B Features

* of the regulators make them essentially immune to overload. TO-263-2L FEATURES

* 5V,6V,8V,9V,10V,12V Output Voltage Available

* Output Transistor Safe-Area Compensation

* No External Components

* Internal Thermal Overload Protection

* Internal Short-Circuit Current Limiting

SU7805-B General Description

The SU78XX-B series of fixed-voltage monolithic integrated-circuit voltage regulators designed for a wide range of applications. These applications include on-card regulation for elimination of noise and distribution problems associated with single-point regulation. Each of these regulators can deli.

SU7805-B Datasheet (529.36 KB)

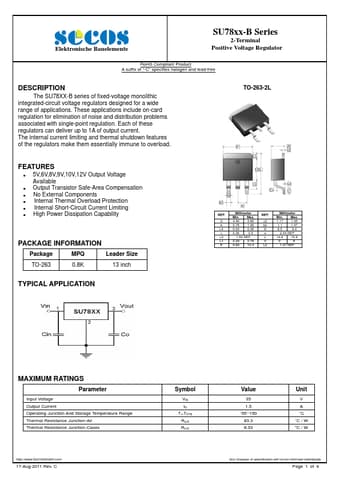

Preview of SU7805-B PDF

Datasheet Details

Part number:

SU7805-B

Manufacturer:

SeCoS

File Size:

529.36 KB

Description:

Positive voltage regulator.
Elektronische Bauelemente SU78xx-B Series 2-Terminal Positive Voltage Regulator RoHS Compliant Product A suffix of “-C” specifies halogen and lead-f.
