* Glass Passivated Superfast Recovery Rectifiers Low Profile, Typical Thickness 0.8mm Low Forward Voltage Drop Low Leakage Current Moisture Sensitivity: level 1, per J-STD-020 Heatsink Structure High Temperature Soldering Guaranteed MARKING Part Number SUF101DT SUF102DT SUF103DT Marking Code PU1 PU2
SUF101DT Datasheet (446.17 KB)
SUF101DT
SeCoS
446.17 KB
1amp surface mount glass passivated superfast rectifier.
Elektronische Bauelemente

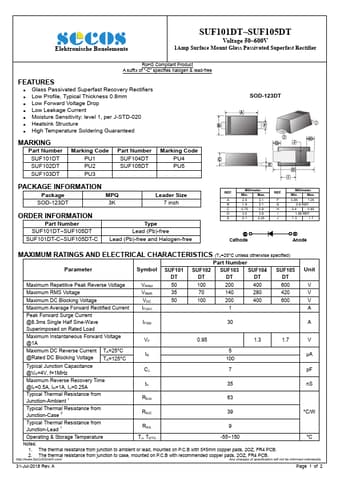

SUF101DT~SUF105DT
Voltage 50~600V
1Amp Surface Mount Glass Passivated Superfast Rectifier
RoHS Compliant Product A suffix .
