SUF103JD

Super Fast Recovery Rectifiers

SUF103JD Features

* Low forward surge current

* Ideal for surface mounted applications

* Low leakage current MECHANICAL DATA

* Case: JEDEC SOD-123JD

* Terminals: Solder Plated, solderable per MIL-STD-750, Method 2026

* Polarity: Color band denotes cathode end MARKING ESL PACKAGE INFORMATION

SUF103JD Datasheet (256.57 KB)

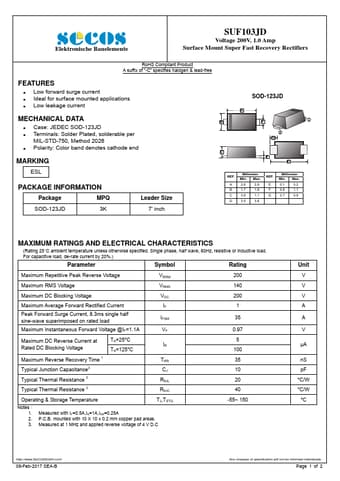

Preview of SUF103JD PDF

Datasheet Details

Part number:

SUF103JD

Manufacturer:

SeCoS

File Size:

256.57 KB

Description:

Super fast recovery rectifiers.
Elektronische Bauelemente SUF103JD Voltage 200V, 1.0 Amp Surface Mount Super Fast Recovery Rectifiers RoHS Compliant Product A suffix of “-C” specif.
