S-5840B

TEMPERATURE SWITCH IC

S-5840B Features

* Detection temperature: TDET = +55 to +95°C, +1°C step, detection accuracy: ±2.5°C

* Wide voltage operation: VDD = 1.0 V to 10.0 V

* Release voltage: VRET = 2.2 V to 3.4 V, 0.1 V step

* Low current consumption: IDD = 12 μA typ. (Ta = +25°C).

* Built-

S-5840B General Description

Test pin GND pin Capacitor connection pin for setting malfunction prevention time Output pin Power supply pin 4 Seiko Instruments Inc. Rev.2.1_00 TEMPERATURE SWITCH IC (THERMOSTAT IC) WITH LATCH S-5840B Series

* Absolute Maximum Ratings Table 4 Item Power supply voltage (VSS = 0 V) Pi.

S-5840B Datasheet (162.35 KB)

Preview of S-5840B PDF

Datasheet Details

Part number:

S-5840B

Manufacturer:

Seiko Instruments

File Size:

162.35 KB

Description:

Temperature switch ic.

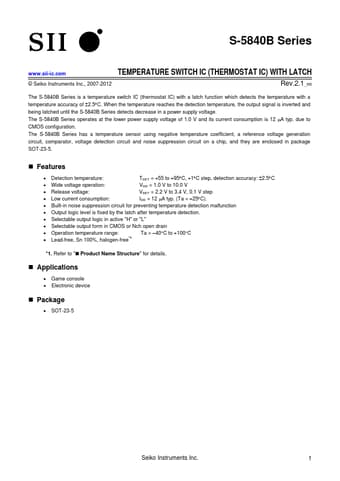

S-5840B Series www.sii-ic.com TEMPERATURE SWITCH IC (THERMOSTAT IC) WITH LATCH © Seiko Instruments Inc., 2007-2012 Rev.2.1_00 The S-5840B Series .
