S-5816A (S-5815A / S-5816A) CMOS TEMPERATURE SENSOR IC

Power supply pin GND pin GND pin Output voltage pin 4 1 S-5815A 3 2 1 VDD VSS *1 2 VSS *1 3 4 VOUT *1. Connect both VSS pins to GND. Figure 2 WLP-4B Top view 4 1 S-5816A 3 2 Figure 3 WLP-4B Bottom view 1 4 2 3 S-5815A/S-5816A Figure 4 * Absolute Maximum Ratings Table 3 .

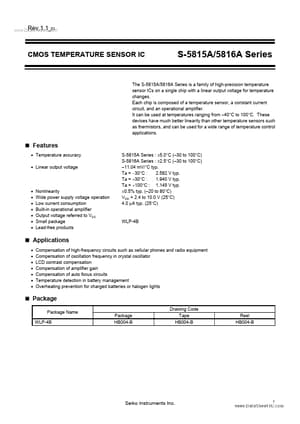

Rev.1.1_01 www.DataSheet4U.com CMOS TEMPERATURE SENSOR IC S-5815A/5816A Series The S-5815A/5816A Series is a family of high-precision temperature sensor ICs on a single chip with a linear output voltage for temperature changes. Each chip is composed of a temperature sensor, a constant current circuit, and an operational amplifier. It can be used at temperatures ranging from 40°C to 100°C. These devices have much better linearity than other temperature sensors such as thermistors, and.

S-5816A Features

* Temperature accuracy

* Linear output voltage S-5815A Series : ±5.0°C (

* 30 to 100°C) S-5816A Series : ±2.5°C (

* 30 to 100°C)

* 11.04 mV/°C typ. Ta =

* 30°C : 2.582 V typ. Ta = +30°C : 1.940 V typ. Ta = +100°C : 1.145 V typ. ±0.5% typ. (

* 20 to 80°

S-5815A_SeikoInstruments.pdf

S-5816A Datasheet Preview — This datasheet PDF includes multiple part numbers: S-5816A, S-5815A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

S-5816A, S-5815A

Manufacturer:

Seiko Instruments

File Size:

282.28 KB

Description:

(s-5815a / s-5816a) cmos temperature sensor ic.

Note:

This datasheet PDF includes multiple part numbers: S-5816A, S-5815A.
Please refer to the document for exact specifications by model.
