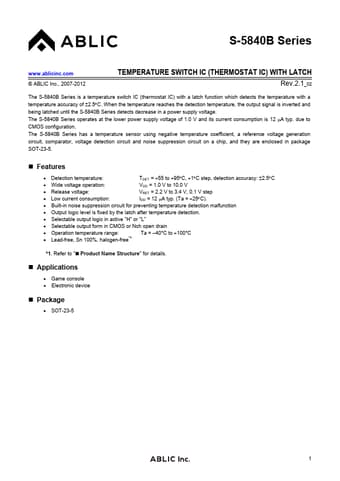

Preview of S-5840B PDF
S-5840B Datasheet Preview Page 2 S-5840B Datasheet Preview Page 3

Datasheet Details

Part number:

S-5840B

Manufacturer:

ABLIC

File Size:

299.02 KB

Description:

Temperature switch.

S-5840B, TEMPERATURE SWITCH

S-5840B Series www.ablicinc.com © ABLIC Inc., 2007-2012 TEMPERATURE SWITCH IC (THERMOSTAT IC) WITH LATCH Rev.2.1_02 The S-5840B Series is a temperature switch IC (thermostat IC) with a latch function which detects the temperature with a temperature accuracy of 2.5C.

When the temperature reaches the detection temperature, the output signal is inverted and being latched until the S-5840B Series detects decrease in a power supply voltage.

The S-5840B Series operates at the lower power supply v

S-5840B Features

* Detection temperature: TDET = 55 to 95C, 1C step, detection accuracy: 2.5C

* Wide voltage operation: VDD = 1.0 V to 1
