S-5852A, HIGH-ACCURACY DIGITAL TEMPERATURE SENSOR

Slave address input pin Slave address input pin Slave address input pin GND pin Serial data I/O pin Serial clock input pin Temperature switch output (Thermostat output) pin Power supply pin Figure 2 *1.

For HSNT-8(2030) package, connect the heat sink of back side to the board, and set electric

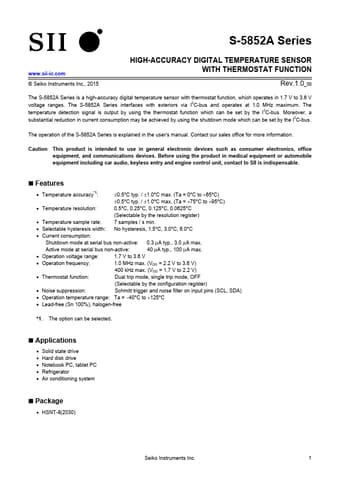

S-5852A Series www.sii-ic.com © Seiko Instruments Inc., 2015 HIGH-ACCURACY DIGITAL TEMPERATURE SENSOR WITH THERMOSTAT FUNCTION Rev.1.0_00 The S-5852A Series is a high-accuracy digital temperature sensor with thermostat function, which operates in 1.7 V to 3.6 V voltage ranges.

The S-5852A Series interfaces with exteriors via I2C-bus and operates at 1.0 MHz maximum.

The temperature detection signal is output by using the thermostat function which can be set by the I2C-bus.

Moreover, a substant

S-5852A Features

* Temperature accuracy

* 1: ±0.5°C typ. / ±1.0°C max. (Ta = 0°C to +65°C) ±0.5°C typ. / ±1.0°C max. (Ta = +75°C to +95°C)

* Temperature resolution: 0.5°C, 0.25°C, 0.125°C, 0.0625°C (Selectable by the resolution register)

* Temperature sample rate: 7 samples / s min.
