* Detection temperature: TDET = +50°C to +100°C, +5°C step, detection accuracy: ±2.5°C
* Low voltage operation: VDD = 1.65 V min.
* Low current consumption: IDD = 0.18 μA typ. (Ta = +25°C)
* Hysteresis temperature: selectable in 5°C, 10°C, 15°C or 20°C
S-5844A
ABLIC
515.39 KB
Temperature switch.

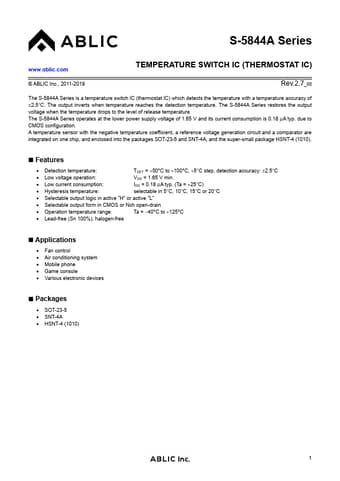

S-5844A Series
www.ablic.com © ABLIC Inc., 2011-2019
TEMPERATURE SWITCH IC (THERMOSTAT IC)
Rev.2.7_00
The S-5844A Series is a temperature switch IC.
