S-24C01C

2-WIRE SERIAL E2PROM

S-24C01C Features

* Operating voltage range Read: 1.6 V to 5.5 V Write: 1.7 V to 5.5 V

* Page write: 16 bytes / page

* Sequential read

* Operation frequency:

* Write time: 400 kHz (VCC = 1.6 V to 5.5 V) 5.0 ms max.

* Noise suppression: Schmitt trigger and noi

S-24C01C General Description

Slave address input Slave address input Slave address input 4 GND Ground 5 SDA
*1 Serial data I/O 6 SCL
*1 Serial clock input Write protect input 7 WP Connected to VCC: Protection valid Open or connected to GND: Protection invalid 8 VCC Power supply
*1. Do not use it in high.

S-24C01C Datasheet (0.97 MB)

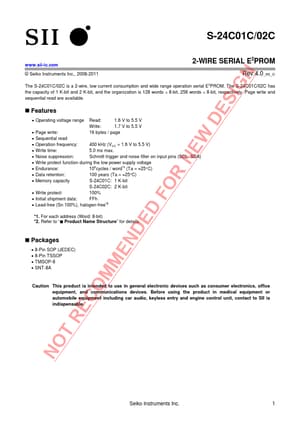

Preview of S-24C01C PDF

Datasheet Details

Part number:

S-24C01C

Manufacturer:

Seiko

File Size:

0.97 MB

Description:

2-wire serial e2prom.
NOT RECOMMENDED FOR NEW DESIGN S-24C01C/02C www.sii-ic.com © Seiko Instruments Inc., 2008-2011 2-WIRE SERIAL E2PROM Rev.4.0_00_C The S-24C01C/02C .
